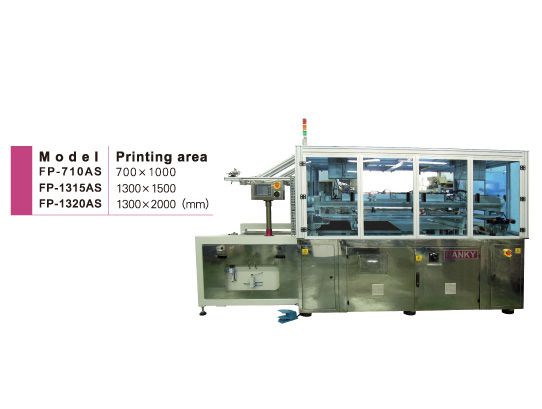

Suitable for automatic production line such as insulator, light guide plate (LGP), etc.
Machine features :
- Optional to integrate loading/ unloading conveyor.
- Squeegee stroke is designed to print from left to right.
- Screen frame up/ down adjustment can be adjusted and controlled within 10μm.
- Clamping of the screen frame is performed with pneumatic locks and manual locks.
- Four posts up/down movement is driven by servo motor and ball screw for printing stability.
- Printing tolerance controlled within 10μm.
- Vacuum zones can be controlled separately to supply stronger vacuum.
- Settings of printing speed and cycle run can be controlled via touch panel.
